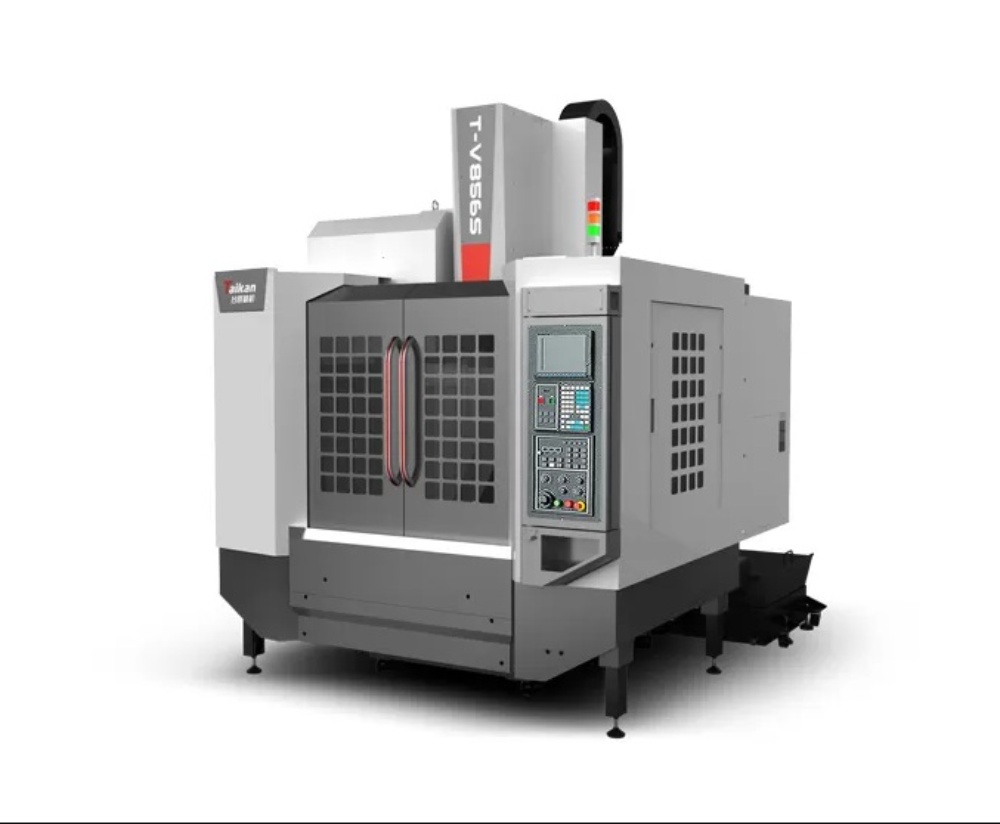

High-speed vertical machining center with BT40 direct-drive spindle for versatile precision machining of automotive, aerospace, mold, and industrial components.
| Specification | Value |
|---|---|
| Travel (X / Y / Z) | 800 / 550 / 600 mm |
| Table Size | 1000 × 500 mm |
| Table Load Capacity | ~450–500 kg (even load) |
| Spindle Speed | up to 12,000 rpm |
| Spindle Taper | BT40 |
| Spindle Motor Power | 7.5 / 11 / up to 15 kW (varies by config) |
| CNC Control System | Fanuc Oi-MF Plus |
| Tool Capacity | 24 tools |
| Rapid Traverse | ~48 m/min (X/Y/Z) |
| T-Slots (No. × Width × Spacing) | 5 × 18 × 100 mm |
| Repeatability / Position Accuracy | ~±0.003–0.005 mm / ~±0.008 mm |
| Machine Dimensions (L × W × H) | ~2240 × 3100 × 2900 mm |
| Weight | ~4200–5000 kg |
