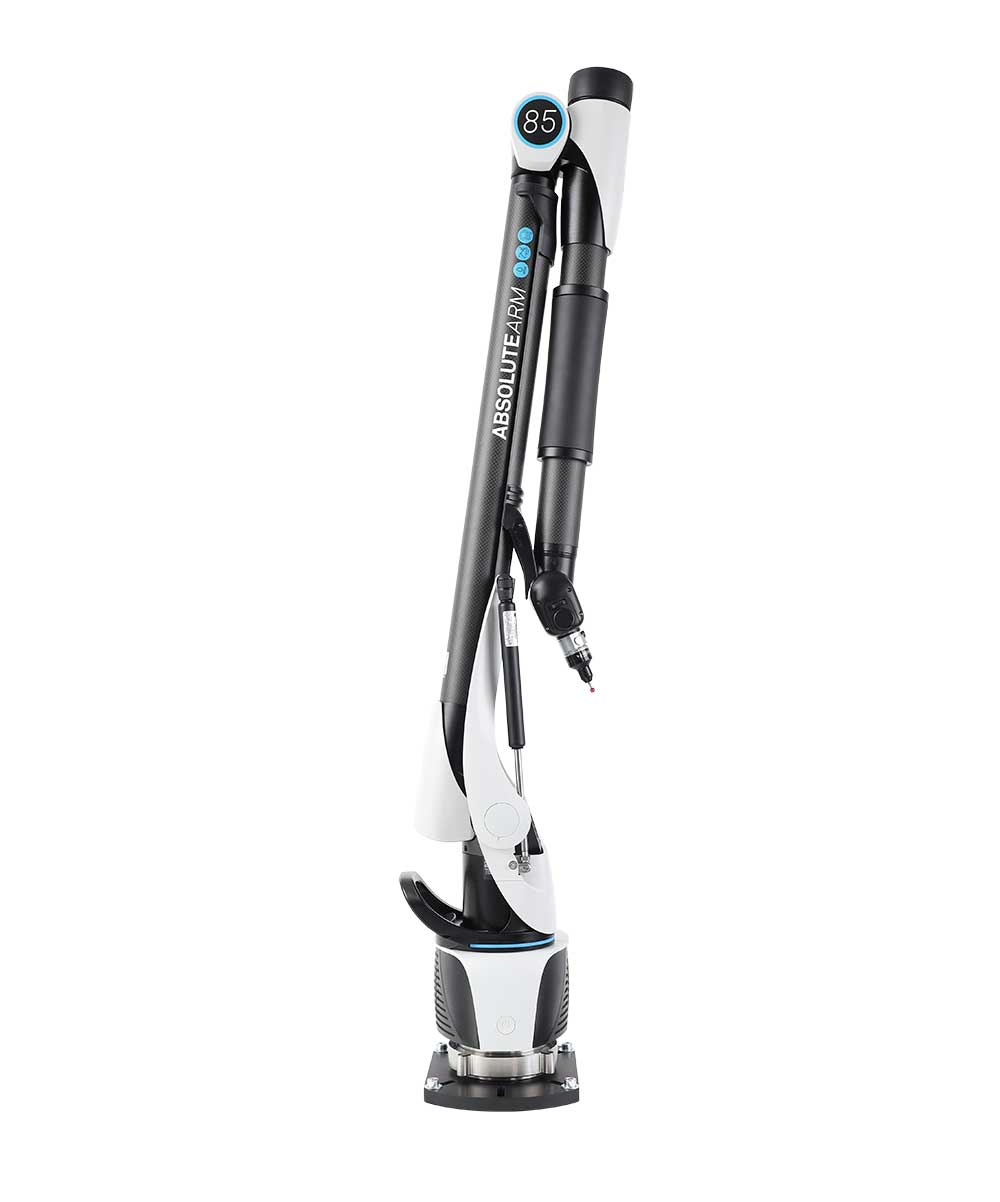

The Romer Absolute Arm is a portable, 6-axis articulated measuring arm designed for high-precision 3D measurements, CAD-to-part comparison, alignment, and inspection on the shop floor. Ideal for complex surfaces and large parts where a fixed CMM is impractical.
| Specification | Value |
|---|---|
| Measurement Range / Arm Sizes | 2.0 m, 2.5 m, 3.0 m, 3.5 m, 4.0 m, 4.5 m diameter volumes |
| Accuracy (Probing) | Up to ±0.023 mm |
| Volumetric Accuracy | ±0.042 mm |
| Axis | 6-axis articulated |
| Weight | 7.8 – 10.5 kg (depending on arm size) |
| Protection / Environment | IP54 (dust & water resistant); Operating temperature 5°C–45°C |
| Certification | ISO 10360‑12 (probing) |
| Accessories / Features | Zero-G counterbalance, SpinGrip/SpinKnob handles, multiple probe options (ball probes, laser scanning), tripods, magnetic/vacuum bases, carrying case |
